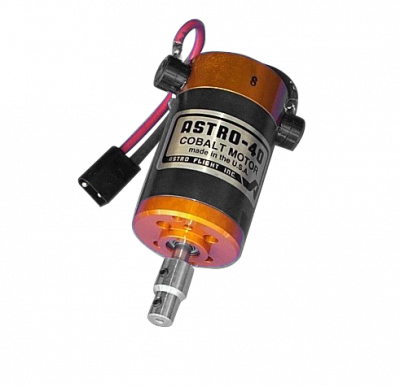

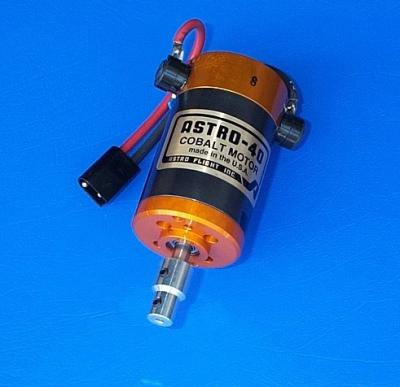

940 COBALT 40 DIRECT DRIVE MOTOR

940 COBALT 40 DIRECT DRIVE MOTOR

$525.00

Quantity:

More Info



Model No.
P/N 940
Armature Winding
8 turns, #20
Armature Resistance
0.121 ohms
Magnet Type
Sm Cobalt
Bearings
Ball Bearings
Speed/Volt
682 rpm/volt
Torque/Amp
1 inch ounces/amp
Voltage Range
12 to 24 volts
No Load Current
3 amps
Continuous Current Rating
35 amps
Continuous Power Rating
750 watts
Stall Current (10 seconds)
100 amps
Motor Length
2.8 inches
Motor Diameter
1.7 inches
Mounting Screws
6-32 screws
Screw Spacing
1 inch
Shaft Diameter
0.250 inches
Shaft Length
3/4 inch
Weight 12.5 oz



For an explanation of motor terminology and parameters, please click here.



Specifications

*Motor only. Does not include coupler, exit wires, and connector.

Warranty

Astro Flight, Inc. warrants all products against defects in material and workmanship for a period of 90 days, from the date of purchase. During the warranty period, Astro Flight will repair or replace the product. This warranty does not apply if the product has been damaged by accident, abuse, misuse or misapplication, nor as a result of service or modification made by others. Astro Flight is not responsible for incidental or consequential damages resulting from the use of this product. This includes damages to intellectual information, property and personal injury. Astro Flight reserves the right to make changes in future product design, without reservation and without notification to its users.

Returns

Please contact the Customer Support Department to obtain a Return Merchandise Authorization (RMA) number, before shipping the product back to Astro Flight. Returns will not be accepted without a valid RMA number. For faster service, please have the following information on hand when calling or emailing for an RMA number: customer name, invoice number and reason for return. Shipping charges on returned items are the customer's responsibility. Products should be returned with shipping charges prepaid, along with proof of purchase, a description of the problem and the issued RMA number. All returned products are subject to a 15% restocking fee.
