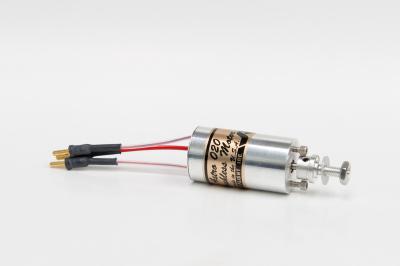

803M-5T ASTRO 020 DIRECT DRIVE MOTOR

803M-5T ASTRO 020 DIRECT DRIVE MOTOR

$100.00

Quantity:

More Info

Astro 020 Direct Drive 5 turn motor

Motor
P/N 803M-5T
Stator Winding
5 Turns, #20
Motor kv
2567 rpm/volt
Winding Resistance
0.070 ohms
No Load Current
1 amp
Maximum Current
25 amps
Maximum Power
250 watts
Rotor Magnets
Sm Cobalt
Bearings
Ball Bearings
Motor Length
1.75 inches
Motor Diameter
0.98 inches
Motor Weight
3.2 ounces
Motor Shaft Diameter
1/8 inch
Prop Adaptor Diameter.
3/16 inch
Voltage Range 6 to 12 Volts



For an explanation of motor terminology and parameters, please click here.



Warranty

Astro Flight, Inc. warrants all products against defects in material and workmanship for a period of 90 days, from the date of purchase. During the warranty period, Astro Flight will repair or replace the product. This warranty does not apply if the product has been damaged by accident, abuse, misuse or misapplication, nor as a result of service or modification made by others. Astro Flight is not responsible for incidental or consequential damages resulting from the use of this product. This includes damages to intellectual information, property and personal injury. Astro Flight reserves the right to make changes in future product design, without reservation and without notification to its users.

Returns

Please contact the Customer Support Department to obtain a Return Merchandise Authorization (RMA) number, before shipping the product back to Astro Flight. Returns will not be accepted without a valid RMA number. For faster service, please have the following information on hand when calling or emailing for an RMA number: customer name, invoice number and reason for return. Shipping charges on returned items are the customer's responsibility. Products should be returned with shipping charges prepaid, along with proof of purchase, a description of the problem and the issued RMA number. All returned products are subject to a 15% restocking fee.
