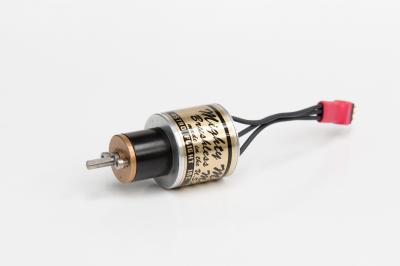

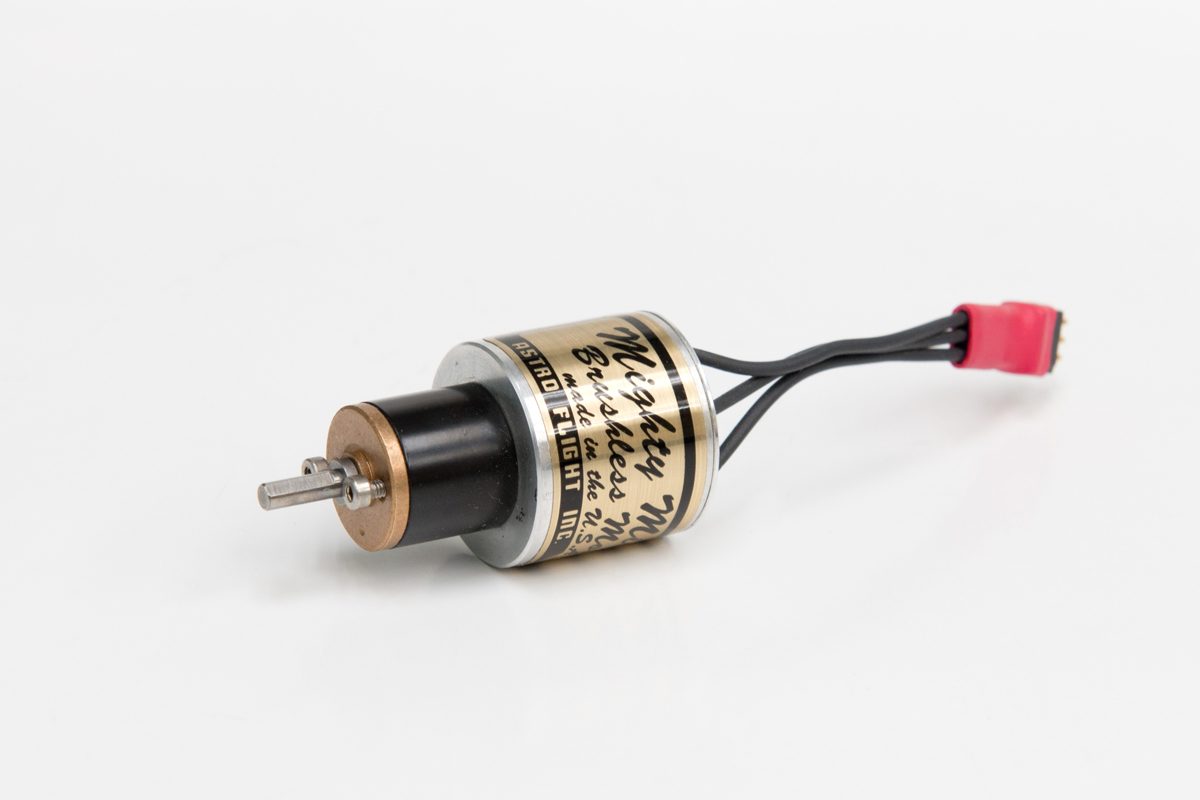

801PM-8T MICRO PLANETARY MOTOR (NO SPEED CONTROL)

801PM-8T MICRO PLANETARY MOTOR (NO SPEED CONTROL)

$135.00

Quantity:

More Info



System
P/N 801PM-8T
Stator Winding
8 Turns, #23
Motor Kv
4000 prm/volt
Winding Resistance
0.100 ohms
Gear Ratio
4 to 1
Kv with Gear Box
1000 rpm/volt
No Load Current
400 ma
Maximum Continuous Current
11 amps
Maximum Current for 1 minute
12 amps
Maximum Power
120 watts
Maximum Motor Rpm
40,000 rpm
Maximum Prop Rpm
10,000 rpm
Motor Weight
34 grams
Gear Box Weight
16 grams
Control Weight
10 grams
Motor Length
0.90 inches
Gear Box Length
0.50 inches
Prop Shaft Diameter
3 mm
Prop Adaptor Diameter
5 mm
Motor Diameter
25 mm
Control Type
Sensorless
Control Rating
10 amp continuous
Voltage Range
6 to 12 Volts
BEC Rating 5 volts at 1 amp



For an explanation of motor terminology and parameters, please click here.



Size & Fit Guide

801pm

Warranty

Astro Flight, Inc. warrants all products against defects in material and workmanship for a period of 90 days, from the date of purchase. During the warranty period, Astro Flight will repair or replace the product. This warranty does not apply if the product has been damaged by accident, abuse, misuse or misapplication, nor as a result of service or modification made by others. Astro Flight is not responsible for incidental or consequential damages resulting from the use of this product. This includes damages to intellectual information, property and personal injury. Astro Flight reserves the right to make changes in future product design, without reservation and without notification to its users.

Returns

Please contact the Customer Support Department to obtain a Return Merchandise Authorization (RMA) number, before shipping the product back to Astro Flight. Returns will not be accepted without a valid RMA number. For faster service, please have the following information on hand when calling or emailing for an RMA number: customer name, invoice number and reason for return. Shipping charges on returned items are the customer's responsibility. Products should be returned with shipping charges prepaid, along with proof of purchase, a description of the problem and the issued RMA number. All returned products are subject to a 15% restocking fee.
